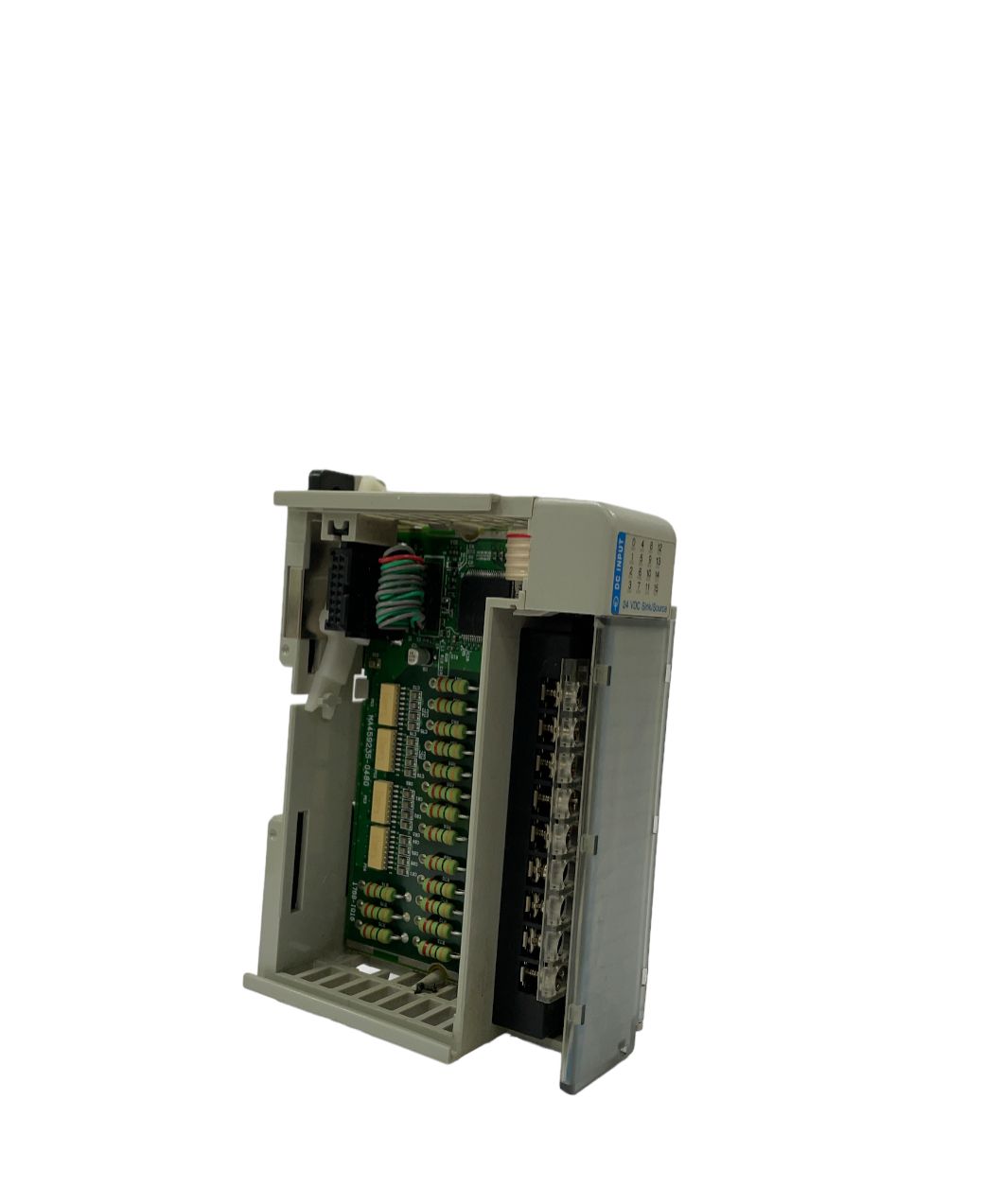

Allen-Bradley 1769-IQ16

The Allen-Bradley 1769-IQ16 input module is a compact 24 Volts DC sink/source input module. There are 16 inputs on the 1769-IQ16 module which are divided into 2 groups of 8 inputs each. The voltage category of the module is 24 Volts DC. The 1769-IQ16 input module draws 115 milliamps of current from the system backplane at a supply voltage of 5 Volts DC. The amount of heat dissipated by the module can go up to 3.55 Watts. The operating voltage range at 30 degrees Celsius is 10 to 30 Volts DC and the operating voltage range at 60 degrees Celsius is 10 to 26.4 Volts DC. The values for both the input delay (off) and the input delay (on) are 8 milliseconds.
