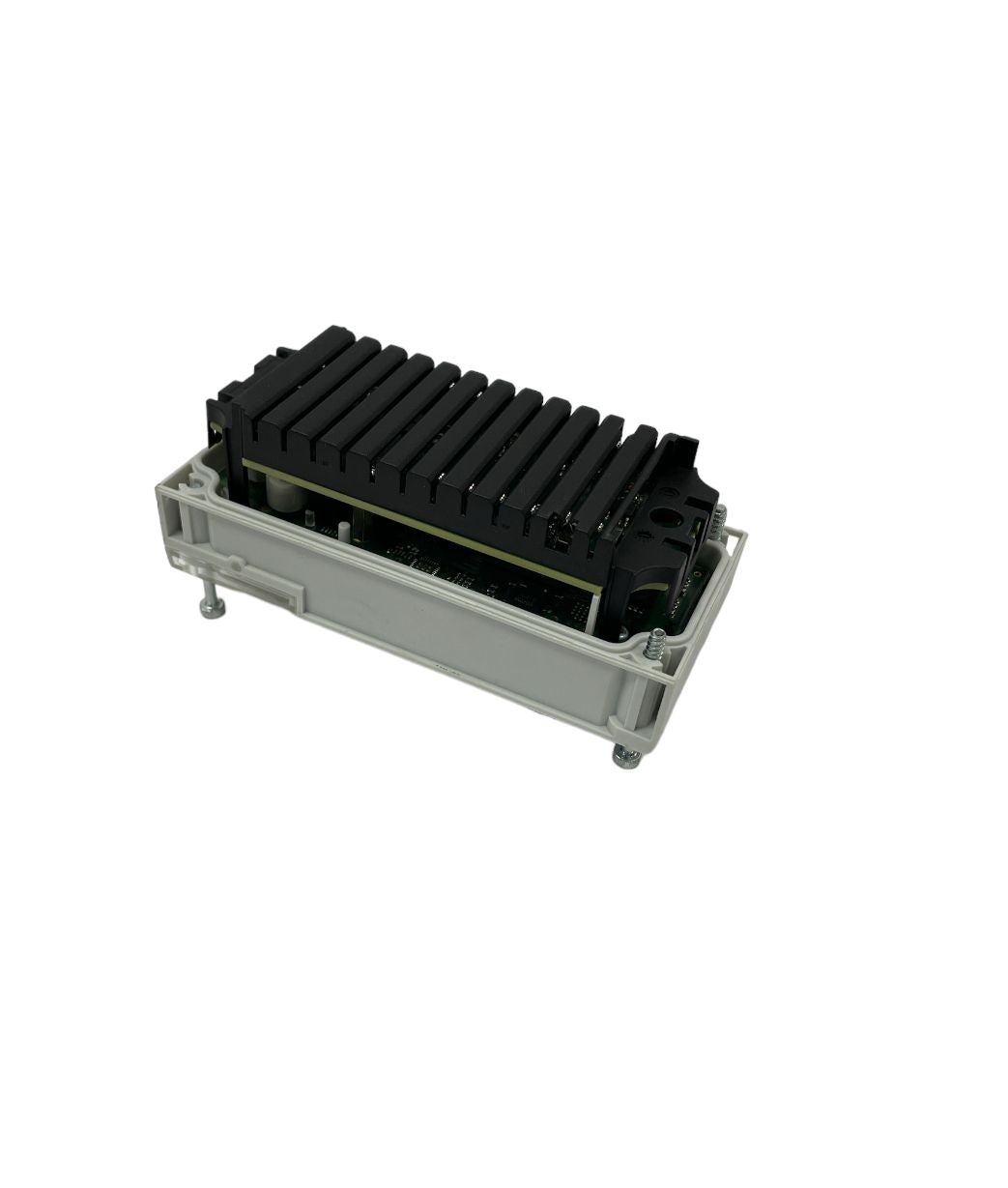

Festo CPX-FB36
Festo CPX-FB36
Regular price
€270,00 EUR
Regular price
Sale price
€270,00 EUR
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
| Dimensions W x L x H | (including interlinking block)50 mm x 107 mm x 50 mm |
|---|---|
| Fieldbus interface | 2x socket, M12x1, 4-pin, D-coded |
| Device-specific diagnostics | Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory |
| Configuration support | EDS fileL5K export with CPX-FMT |
| Parameters configuring | ‘- Diagnostic behaviour- Failsafe response- Forcing of channels- Idle mode characteristics- Signal setup- System parameter |
| Additional functions | ‘- EtherNet/IP Quickconnect- Ringtopologie (DLR)- Acyclic data access via “Explicit Message”Acyclic data access via Ethernet- IP addressing via DHCP, DIL switch or operator unitIntegrated SwitchChannel-oriented diagnostics via fieldbusStart-up parameterisation in normal text via fieldbusSystem status can be represented using process data |
| Control elements | DIL switches |
| Baud rate | 10/100 Mbit/s |
| Operating voltage range DC | 18 … 30 V |
| Intrinsic current consumption at operating voltage | Typ. 100 mA |
| Nominal operating voltage DC | 24 V |
| Corrosion resistance classification CRC | 1 – Low corrosion stress |
| Storage temperature | -20 … 70 °C |
